EF-45M

EF-45M

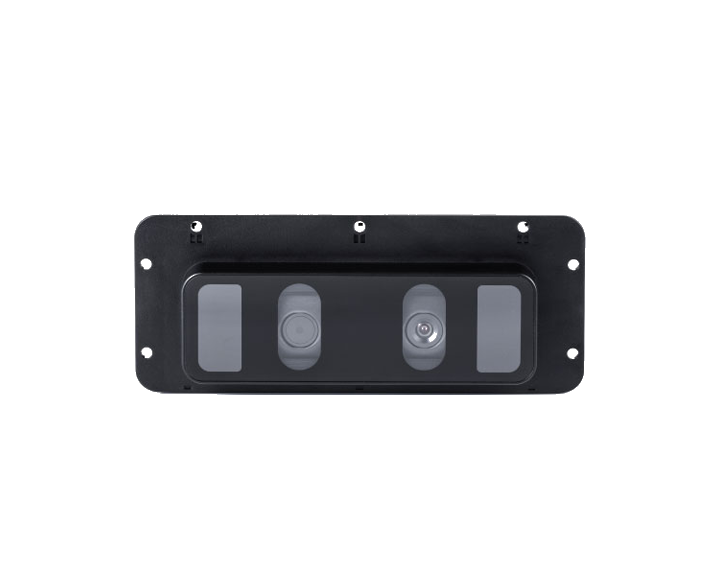

Modular version of innovative EF-45 system

The EF-45M is the modular version of CMITech’s next generation dual iris imaging system. It is intended for specialized solution integrators to incorporate high accuracy iris recognition biomet-rics into a kiosk or similar terminal.

    • The modular design allows the integrator to utilize the kiosk’s own display screen to show the user’s face image during iris image capture with the same positioning feedback cues and instructions as in the EF-45 system. In this way, there is only one display on the system, thereby minimizing console or front surface area usage and improving the overall appearance of the kiosk.

  • Embedded CPU ARM Cortex A9 quad-core processor
    On-board Iris algorithm for encod-ing and matching Standard: Delta ID
    Optional: Neurotechnology VeriEye 10.0
    Flexible Software Development Kit (SDK) configurations C++ High Level SDK is RESTful type SDK that includes EF-45M host side application for LAN or USB connection to on-board EF-45M resident services layer. Requires Windows API development to EF-45M host side application. Reference code included.
    Host side compatibility Windows and Linux on x86 platform.Please contact CMITech for Android support.
    Dimensions 191 x 78 x 70 mm (7.5 x 3.1 x 2.8 inches) including mounting plate
    Weight 390 g
    On-board data storage Up to 10,000 iris template pairs (useful for 1:N authentication mode) with match speed of under 1.0 seconds.
    Iris image output Meets ISO 29794-6 and 19794-6 2011 standards
    Iris image pixel resolution 640 x 480 pixels, 8 bit depth. Output format .bmp
    Standard operational iris imag-ing distance (stand-off range) and depth of field 35 to 45 cm range (10 cm depth of capture range) in enrollment mode.
    Iris positioning indicators Face positioning within box in LCD display for X – YFace sizing to box within LCD display for distance (Z) positioning with simultaneous color bar display for correct distance positioning:Blue: too far awayGreen: OKRed: too closeSupplemental voice distance feedback standard. Convertible to local language via .wav file substitution.
    Auto tilt Internal: +25 to -20 degree up/down tilt.
    Speed of iris image capture Typically about 0.5 seconds f rom time subject’s eyes are placed within proper capture volume.
    IR illumination for iris imaging Dual wavelength near inf rared (NIR) LEDs to conform to ISO best prac-tices for iris imaging.
    Face image capture Standard 24-bit color (for reference image)
    Audio Audio out connector for external speaker
    Operating temperature range 0 to 45 ̊C
    Humidity 10 to 90% RH, non-condensing
    Illuminator eye safety standard IEC 62471
    Host interface options 10/100 Base-T Ethernet (RJ45 connector) or USB 2.0
