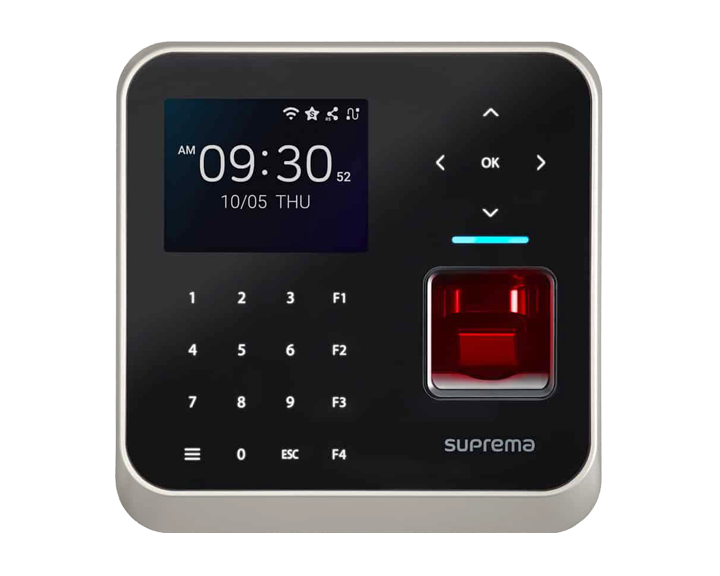

BioStation 2a
The World’s First AI Security Solution Offering Unparalleled Security
BioStation 2a represents a significant step in the evolution of security technology. It introduces deep learning into fingerprint recognition, enhancing access control with multiple credential options. The core innovation lies in its embedded AI processor, the NPU (Neural Processing Unit), finely tuned for deep learning, resulting in remarkable precision and speed in fingerprint recognition. Explore the future of security with BioStation 2a.
-
- The World’s First Deep-Learning Processor Adopted
- Over 30% Improvement in Fingerprint Recognition
- x5 Higher Capacity : Up to 100,000 users
- Multiple Credential
- Customize Features
- Large-scale Data Processing Capacity
- Versatile Environment Adaptation
BioStation 2a is powered by an AI processor, the NPU (Neural Processing Unit). This ensures lightning-fast and precise fingerprint recognition, setting new standards for security solutions for the first time in the world.
Through deep learning, the accuracy of fingerprint recognition is increased extensively. The ability to extract templates from low-quality fingerprints, such as those that are noisy or distorted, has significantly improved.
Increase the capacity by fivefold, from 20,000 to an impressive 100,000. Even with this substantial capacity expansion, BioStation 2a boasts enhanced speed, thanks to its upgraded Processor, now running at 1.5GHz, and the application of Neutral Pocessor Unit(NPU) technology.
Complete Access Control : Your Security, Your Way
Offer fingerprint recognition, mobile access(NFC/BLE), and RFID card options making authentication easier
Enable integration and simple adding-on new features with an extended USB host
Enable matching up to 100,000 fingerprint recognition template, and storing up to 5,000,000 logs
Whether it’s indoors or outdoors, BioStation 2a seamlessly adapts to any environment. It’s IP65 rated and can operate in temperatures ranging from -20°C to 60°C, guaranteeing durability even in rugged conditions
- The World’s First Deep-Learning Processor Adopted
-
Model Name BS2A-ODPB BS2A-OAPWB Credential Biometrics Fingerprint RF Option 125kHz EM & 13.56MHz MIFARE, MIFARE Plus, DESFire, DESFire EV1/ EV2/EV31), FeliCa 125kHz EM, HID Prox & 13.56MHz MIFARE, MIFARE Plus, DESFire, DESFire EV1/EV2/EV31), Felica, iCLASS SE/SR/Seos RF Read Range MIFARE/DESFire/EM: 50 mm, FeliCa: 30 mm 125kHz EM, HID Prox & 13.56Mhz MIFARE, MIFARE Plus, DESFire, DESFire EV1/EV2/EV31), FeliCa, iCLASS SE/SR/Seos Mobile Card NFC, BLE Protections IP Rating IP65 Fingerprint Image dimension 272×320 pixels Image bit depth 8 bits, 256 gray scale Resolution 500 dpi Template SUPREMA/ISO19794-2/ANSI-378 Extractor/Matcher MINEX certified and compliant Live Fingerprint Detection Supported (SW-based) Capacity Max. User 500,000 Max. Credentials (1:N) Fingerprint : 100,000 Max. Credentials (1:1) Fingerprint : 500,000
Card : 100,000
PIN: 500,000Max. Text Logs 5,000,000 General CPU 1.5 GHz Quad Core Memory 16 GB Flash + 2 GB RAM Crypto Chip Supported Display 2.8″ color TFT LCD LCD Resolution 320×240 LED Multi-color Sound 16 bit Operating Temperature -20°C ~ 60°C Storage Temperature -40°C ~ 70°C Operating Humidity 0% ~ 80%, non-condensing Storage Humidity 0% ~ 80%, non-condensing Weight Device: 429 g
Bracket (Including washer and bolt): 142gDimension (WxHxD, mm) 142 x 144 x45 (Bottom) / 37.8 (Top) (mm) Certificates CE, UKCA, KC, FCC, RCM, SIG, RoHS, REACH, WEEE Interface Wifi Not Supported Supported (10/100 Mbps, auto MDI/MDI-X) Ethernet Supported (10/100 Mbps, auto MDI/MDI-X) RS-485 1 ch Master / Slave (Selectable) RS-485 Communication Protocol OSDP V2 compliant Wiegand 1 ch Input, 1 ch Output Input 3 ch Inputs Relay 1 Relay USB USB 2.0 (Host) USB expansion port Supported Tamper Supported Electrical Power Voltage: 12 VDC, Current: Max. 0.8 A Voltage: 24 VDC, Current: Max. 0.4 A PoE: Supported (IEEE 802.3af compliant)
