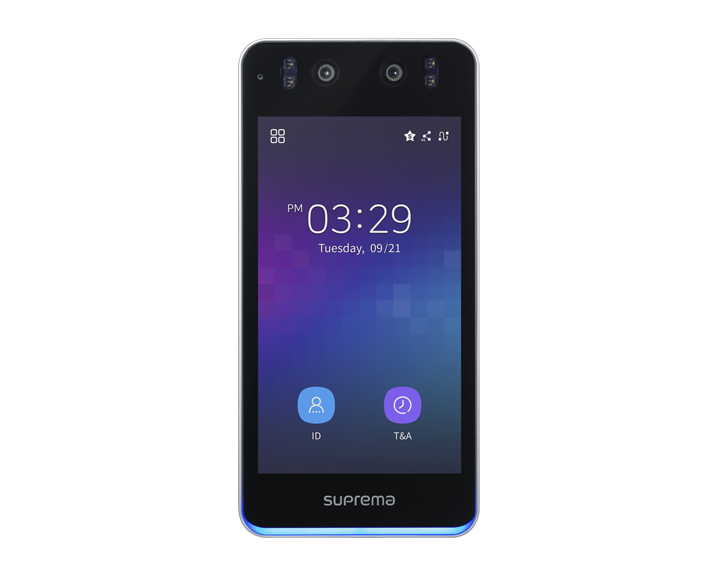

BioStation 3

BioStation 3
The New Door Access Experience

Biostation 3 is a next-generation access control solution which provides multiple credential options from facial recognition and mobile access to QR codes, bracodes and RFID cards suited for post COVID era.

The facial recognition technology in the new BioStation terminal can identify people who are wearing masks, regardless of the shape and color of that facial covering.
The platform authenticates users quickly, accurately and with a minimal false acceptance rate.

BioStation 3 is certified with ISO/IEC 27001, an international standard that helps organisations manage the security of their information, and is designed to comply with GDPR, one of the world’s strictest privacy regulations.

One of the initiatives in protecting personal data is ‘Face Template on Mobile’, a first in the industry, which is an authentication method independently developed by Suprema that allows users to store and manage their facial authentication template on their mobile phone without having to store it in the company’s database.

    • Multiple Contactless Access Methods

      • BioStation 3 provides multiple credential options.Choose from the most convenient authentication methods
      — all contactless and perfectly compatible with a post-pandemic world.
      – Facial Recognition
      – Mobile Access
      – QR and Barcode
      – RFID Card

    • Perfect for Any Door, Any Business

      • BioStation 3 is easy to install and scale in any environment, from small offices to massive enterprise buildings.

    • Fast and Smart AI Optimized for Facial Recognition Access

      • BioStation 3 is a high-tech edge device that can run AI algorithm locally. It uses an NPU, or Neural Processing Unit, to maximize the performance of its AI engine.

    • Easily Connect Across All Access Points

      • BioStation 3 enables integrated management over an entire access control system.

  • Credential
    Biometric Face
    RF Options BS3-DB
    125kHz EM & 13.56MHz MIFARE,
    MIFARE Plus, DESFire EV1/EV21),FeliCa     		BS3-APWB
    125kHz EM, HID Prox & 13.56MHz MIFARE,MIFARE Plus, DESFire EV1/EV2(1), FeliCa, iCLASS SE/SR/Seos
    RF read range* EM/HID iCLASS/MIFARE: 30 mm, HID Prox/DESFire: 25 mm,
    FeliCa: 15 mm
    Mobile NFC, BLE
    Barcode and QR code Supported3
    General CPU 1.5GHz Quad Core
    Memory 32GB Flash + 4GB RAM
    Crypto Chip Supported
    LCD Type >5.5” IPS color LCD
    LCD Resolution 720 x 1280 pixels
    Sound 16bit
    Operating temperature -20°C ~ 50°C (-68°F ~ 122°F)
    Operating humidity 0% ~ 80%, non-condensing
    Camera 2MP x 2EA (Visual, IR)
    Dimensions (W x H x D) 119.8mm x 223mm x 23.5mm(4.7″ x 8.8″ x 0.9″)
    Weight Device: 370g Device: 380g
    Ingress Protection (IP) IP65
    Vandal Proof (IK) IK06
    Certificates KC, CE, UKCA, FCC, RCM (Compliance: RoHS, REACH, WEEE)
    Face Recognition Distance 0.6 ~ 1.0 m (23.6″~39″
    Recognition Height 1.4 ~ 1.9 m (55.1″~74.8
    Matching speed Less than 0.3 sec
    Anti-Spoofing Supported
    Capacity Max. User 100,000
    Credential (1:N) Face: 50,000
    Max. Credential (1:1) Face: 100,000 / Card: 100,000 / PIN: 100,000
    Max. Text Log 5,000,000
    Max. Image Log 50,000
    Interfaces
    Ethernet 10/100 Mbps, auto MDI/MDIX
    Wi-Fi – 802.11 b/g/n
    RS-485 1ch Host or Slave (Selectable)
    Wiegand 1ch Input or Output
    TTL input 2ch Inputs
    Relay 1 Relay
    PoE+ – Supported(IEEE 802.3 at compliant)
    Intercom Supported
    USB USB 2.0 (Host)
    Extended USB Supported
    Tamper Supported
    Power DC 12 V 2.5A, DC 24 V 1.2A
