SL601AI

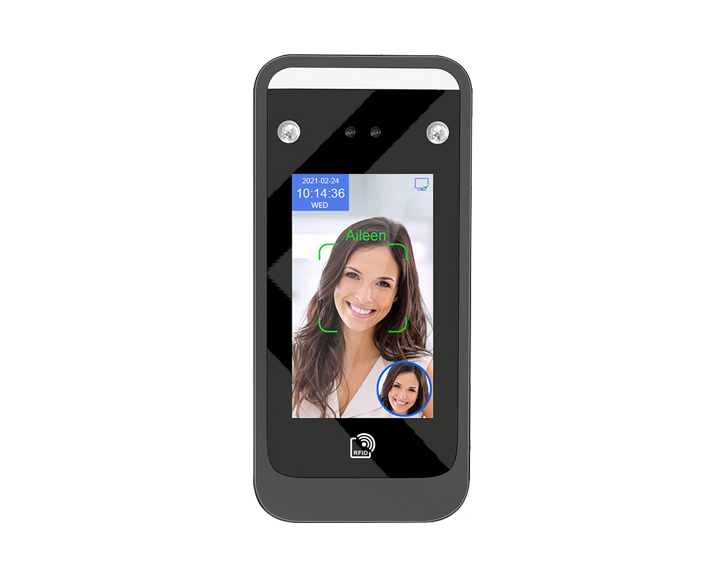

Securelink Pro Face Recognition
This face recognition terminal can be used with application management systems for construction sites, access control systems, time and attendance, etc.
-
- ≤ 0.2 Recognition Speed. 4.3″ Screen Display.
- Support multi Person (at most 5 users) face recognition at the same time.
- Support Mask detection
- Support LED and infrared light compensation at night
- Working Currentstand-by current: 310mA , Working current: 520mA.
Screen 4.3 Inch, HD 272 x 480, Capacitive Touch Screen Keypad Touch keypad Operating System LINUX 3.10 CPU 1.2G Dual-Core ARM Cortex-A7, 600G (0.6T) RAM 256MB DDR3 ROM eMMC Flash 4GB Binocular Camera 200W Colorful WDR+200W Infrared live camera Logs Capacity 500,000 Face Registration Standalone operation: Enroll face with device, import user photo with USB
Software operation: Import user photo to software, capture user photo with cameraVerification Dynamic face recognition, password, Proximity (Mifare Card option) Face Capacity 5,000 (Option: 50,000) Card Capacity 5,000 (Option: Mifare; Option: 50,000 Cards) Password Capacity 5,000 (Option: 50,000) Face Recognition Accuracy 99.70% Recognition Speed less than or equal 0.2s, support single user/multi user(at most 5 users) recognition at same time Recognition Distance 0.5-2.5 meters (0.5-1.5 meters with live face recognition on) Fake Photo Dual camera technology to prevent against fake photo or video WDR Wide dynamic range, support accurate face recognition under Strong light, dark light and backlight USB USB2.0, Support import and export of data Power supply
DC12V Input Audio Extended Speaker Output Network Communication TCP/IP; (Wireless optional) Free Attendance software Support exporting excel attendance report with USB Shift
Support shift setting and importing shift schedule with USB Management Software Support PC software to manage data through network connection with equipment Access Control Function Door left open alarm; forced door open alarm; alarm link and output; one set of door open signal; one set of alarm signal; timed access control; external reader input; Weigand 26/34 Input /Output; Environment Working temperature: -15°C–+45°C (Storage temperature -40°C~+65°C),
Working humidity: 20%-90% (Storage temperature 200%~90±%)
Dark environment: Soft LED fill lights automatically turns on depending on ambient light
Ambient light adaptation range: 0-50000LuxMulti language
English, Spanish, Arabic, Thai, Farsi, Portuguese, French, Italian, Japanese, Korean, etc Voice Displays and Broadcast Name during authentication Automatic fill light Support infrared fill light, the white fill light automatically lights up when face is captured in dark light QR Code Scanner
Support Working Voltage DC12V Installation Standard: Wall mount, desktop stand; Optional: bracket for turnstile, floor stand Machine Dimension 187.5 x 87.5 x 26mm
SL601AI
