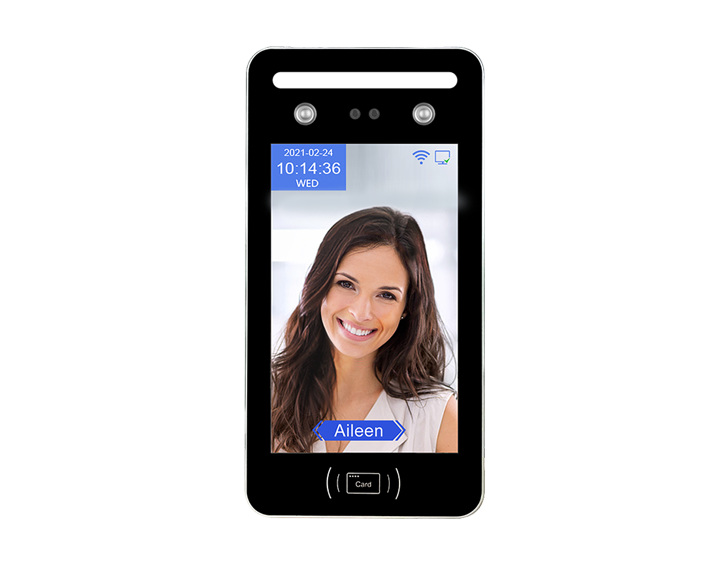

Securelink Pro Face Recognition Terminal
This face recognition terminal can be used with application management systems for construction sites, access control systems, time and attendance, etc.
- ≥.02s Recognition Speed. 8.0 Screen Display.
- Support WDR (Wide Dynamic Range), with good performance under strong light, dark light and backlight environment.
- QR Code Scanning for Visitor.
Screen 8.0 Inch, HD 800 x 1280, Capacitive Touch Screen Operating System LINUX 3.10 CPU 1.2G Dual-Core ARM Cortex-A7, 1200G (1.2T) RAM 512MB DDR3L ROM eMMC Flash 8GB Binocular Camera 200W Colorful WDR+200W Infrared live camera Logs Capacity 500,000 Face Registration Standalone operation: Enroll face with device, import user photo with USB
Software operation: Import user photo to software, capture user photo with camera
Verification Dynamic face recognition, password, Proximity and Mifare Card optional Face Capacity 50,000 Card Capacity 50,000 Proximity and Mifare Card Password Capacity 50,000 optional Face Recognition Accuracy 99.70% Recognition Speed less than or equal 0.2s, support single user/multi user(at most 5 users) recognition at same time Recognition Distance 0.5-2.5 meters (0.5-1.5 meters with live face recognition on) Fake Photo Dual camera technology to prevent against fake photo or video Principle of Identification Face algorithm technology of multi-task cascaded convolutional neural network based on video stream for dynamic face detection, tracking and recognition WDR Wide dynamic range, support accurate face recognition under Strong light, dark light and backlight USB USB2.0, Support import and export of data Power supply
DC12V Input Audio Extended Speaker Output Network Communication TCP/IP; (Wireless optional) Free Attendance software Support exporting excel attendance report with USB Shift
Support shift setting and importing shift schedule with USB Management Software Support PC software to manage data through network connection with equipment Access Control Function Door left open alarm; forced door open alarm; alarm link and output; one set of door open signal; one set of alarm signal; timed access control; external reader input; Weigand 26/34 Input /Output; Environment Working temperature: -15.C–+45X,
Working humidity: 20%-90%
Dark environment: Soft LED fill lights automatically turns on depending on ambient light
Ambient light adaptation range: 0-50000Lux
English, Spanish, Arabic, Thai, Farsi, Portuguese, French, Italian, Japanese, Korean, etc Voice Displays and Broadcast Name during authentication Automatic fill light Support infrared fill light, the white fill light automatically lights up when face is captured in dark light Working Current stand-by current: 310mA , Working current: 520mA. QR Code Scanner
Support Working Voltage DC12V Installation Standard: Wall mount, desktop stand; Optional: bracket for turnstile, floor stand Machine Dimension 265 x 132.6 x 20mm
