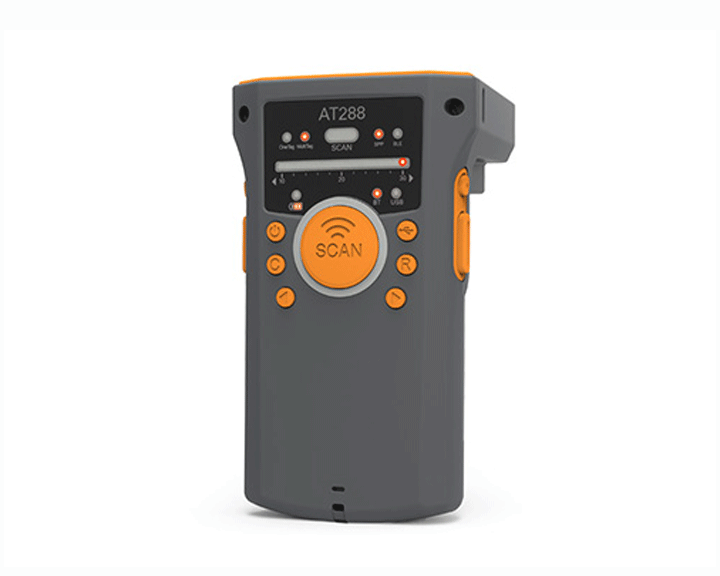

AT288N
RFID Bluetooth Reader
Perfect compatibility with Smart phone, Tablet, and PDA Advanced concept RFID Bluetooth reader
-
- ARM7 Core
- Memory 64KB RAM / 256KB ROM, Ext.8Mb
- RFID UHF 900MHz EPC Gen2, ISO/IEC 18000-6C/6B (Option)
- Bluetooth Class 4.1 Classic (HID/SPP)
- Cradle
- USB
-
PERFORMANCE CHARACTERISTICS Processor ARM7 Core Memory 64KB RAM / 256KB ROM, Ext.8Mb PHYSICAL CHARACTERISTICS Dimensions (W x L x H) 53.5 (61) x 105.6 x 23.2 (60.3) mm Weight 180g (with battery) Display LED Indicator Power 3.7V 2,200mAh Lithium – Ion Battery (Rechargeable)
Input AC100V ~ 240V / Output DC 5V 2A Power AdapterStandard
I / O PortBluetooth, USB Client Audio Buzzer DATA CAPTURE RFID (UHF) Frequency : CE 865MHz ~ 868MHz / FCC 902MHz ~ 928MHz
Reading range : 0M ~ 3M (According to Tag & Environment)
Writing range : 0M ~ 0.5M (According to Tag & Environment)
RF output : 1W
Protocol : EPC Gen2, ISO/IEC 18000-6C/6B (Option)
Special function : Anti – CollisionWIRELESS COMMUNICATION Bluetooth Bluetooth Class 4.1 Classic (HID/SPP) USER ENVIRONMENT Operating Temp. -10℃ ~ 45℃ Storage Temp. -30℃ ~ 70℃ Humidity 95% non-condensing Drop Spec. 1.5M Drop to concrete Dust & Water Proof IP65 ADDITIONAL FEATURES Notification LED, Buzzer CRADLE Standard Interface Mini USB Client / DC Power jack / Extra Battery Charger *All Features and specifications described are subject to change without notice.
- AT288N
