Exo400

Exo400
High Temperature RFID tag

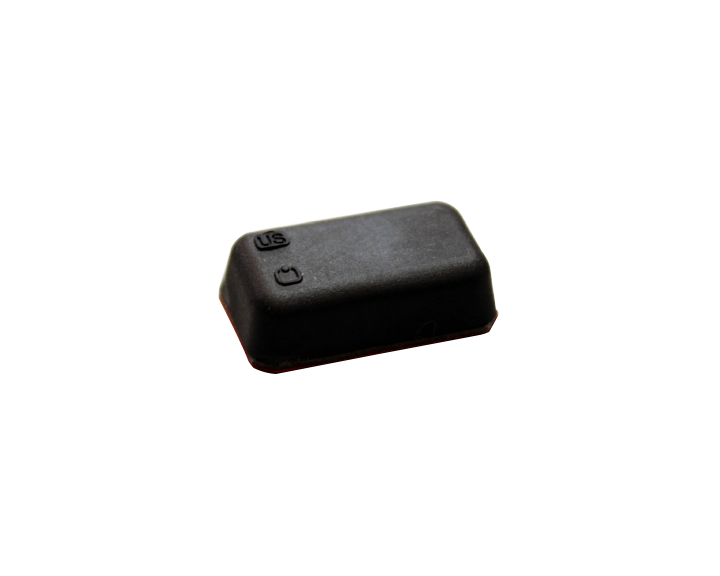

Omni-ID Exo 400 is a small form factor, High Temperature RFID tag optimized for metal substrates. With a combined ability to survive high temperatures to 235°C and a rugged encapsulation, this tag is ready for deployment in a variety of applications without sacrificing read range performance.

  • Omni-ID’s Exo 400 High Temperature tag is an ideal solution for applications where surviving excessive heat in a rugged environment is needed such as:

    • Healthcare sterilization processes
    • Manufacturing
    • Automotive post-paint processes

  • Material Thermoplastic cover
    Size 37 x 14 x 7.5 mm
    1.46 x 0.55 x 0.30 in
    Weight 5.7 (g)
    Protocol EPC Class 1 Gen2v2
    Frequency Range 902-928 MHz
    Read Range (Fixed reader) Up to 4m (13.1 feet)
    Read Range (Handheld reader) Up to 2m (6.5 feet)
    On Metal or Balanced Optimized for metal
    Material Compatibility Metal
    IC Type (chip) Alien Higgs 3
    Memory EPC – 96 bits
    User – 512 bits
    Unique TID – 64 bits
    Operation Temperature -20°C to +85°C
    Max Temperature exposure -20°C to +235°C
    Shock and Vibration MIL STD 810-F
    Attachment Mechanical (std) 2 x 3mm holes
