Exo600

Exo600

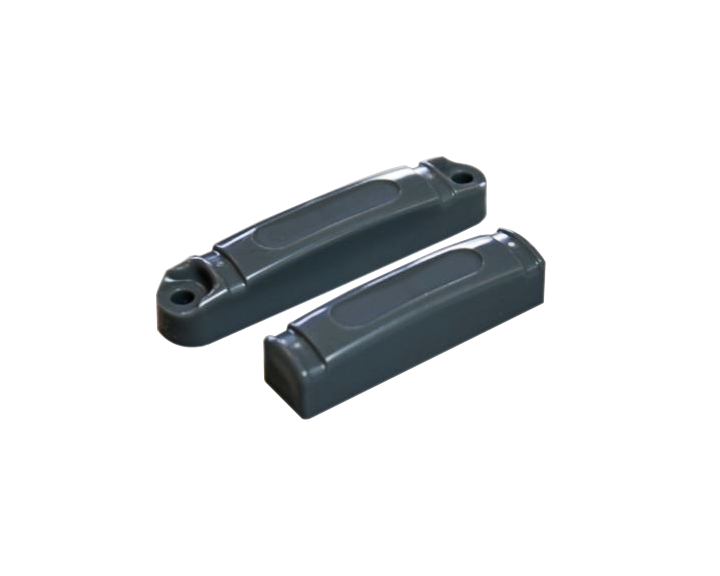

High Temperature RFID tag

Omni-ID Exo 600 is a small, high performance, global RFID tag designed to meet the diverse needs of logistics industries. With a small footprint it is well suited for attachment to metal bars commonly found on RTI’s.

  • With a small footprint and high performance, Exo 600 is ideally suited for RTI applications in the following industries:

    • Logistics and Postal
    • Automotive
    • Retail and Warehousing

  • Material Grey ABS Rigid Plastic
    Size 80 x 15 x 12.5 mm
    3.15 x 0.59 x 0.48 in
    Weight 12.5 (g)
    Protocol EPC Class 1 Gen2v2
    Frequency Range 860 – 930 (GS)
    Read Range (Fixed reader) Up to 6m (on metal), Up to 4m (off metal)
    Read Range (Handheld reader) Up to 3m (on metal)
    On Metal or Balanced Optimized for metal
    IC Type (chip) Impinj Monza 4QT
    Memory EPC – 128 bits
    User – 512 bits
    Unique TID – 48 bits
    Operation Temperature -40°C to +85°C
    Max Temperature exposure -40°C to +85°C
    Shock and Vibration MIL-STD-810 G
    Impact 10KG from 1m
    Attachment Mechanical (std), cable tie or premium foam (option)
